Low Noise Audio Amplifier

This circuit is built with TI sound plus op-amp OPA2134 and THD of the amplifier is less than 0.3% at 12watts RMS into 4ohms driver, very low noise we can achieve using this circuit and this circuit is powered by a single power supply which is very commonly available, Circuit built with  dual op-amp(OPA2134) which is U1.

schematic_visaton

U1B is configured as Vref the output of this op-amp is exactly mid voltage of 20V as 20V/2 is 10V of supply to ensure to have a symmetrical and dynamic range of both input and output signals and it is configured by R8, R9 resistors and C1 buffer capacitor, value of C1 can be calculated as  C1 = 1/(2π×fc×47000/2) where fc cutoff frequency should be <= 1/10th of input frequency(fin)  signal, consider fin = 10Hz; fc=1Hz so C1= 1/(2π×1×23500) = 6.77µF, 6.8µF is rarely available, if available we can use, the commonly available value is 10uF, and the output of this opamp U1B  is fed to U1A non-inverting terminal. C4 is the input capacitor to allow  input signal, R11 is the gain setting input resistor  and R12 serves as feedback resistor so the gain of the amplifier is calculated as 20log(82k/4.7K) = 24.83dB

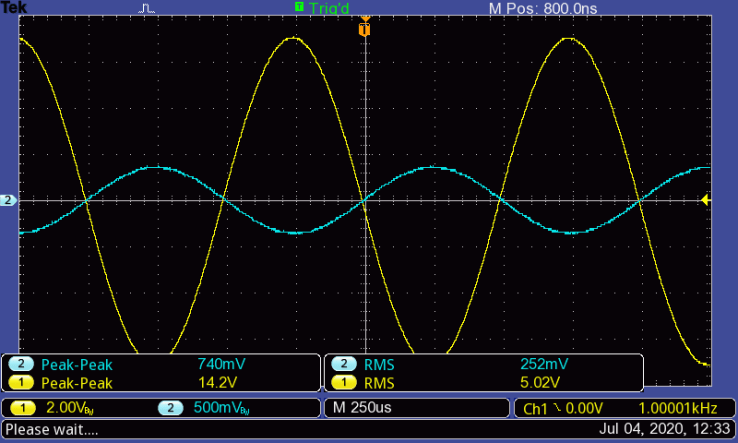

The following is the scope screenshot1,  probing both input and output signals of the amplifier.

F0004TEK - Copysine wave in blue is the input signal(740mV) and yellow the output (14.2V) inverted output

Gain = 20log(14.2/0.740) = 25.66dB which is almost equal to the calculated value of gain with resistors.

Input capacitor C4 value  can be calculated = 1/(2π×fin×R11)  = 1/(2π×10×4700) = 3.386µF The next higher value is 4.7µF.

C2 and C3 connected across op-amp power pins U1C are electrolytic and ceramic combinations to reduce low frequency and high frequency noise in the power supply lines and must be placed close to the op-amp power pins. Main filter capacitors are C5 and C6 to reduce noise in the supply lines; the ESR(Equivalent Series Resistance) of these capacitors must be low, for better noise reduction. R4 protects the op-amp output pin by not over driving the current it is less than 6mA and drives the Q2 transistor of Voltage amplification stage.

 R13 is the current source,R1 , RV1 and  Q4  forms  Vbe multiplier also called as adjustable diode and its purpose  to reduce the cross-over distortion by providing the bias voltage for the Voltage Amplification Stage (VAS)formed by  complementary transistors Q1,  Q2 and drop across R3 , the voltage Vce of Q4 is Vadj, this can be adjusted by varying RV1 setting it to 472

Voltage acrossR1 = 1.3mA×1000 = 1.3V and the

Voltage drop across RV1 = 1.3mA×472=0.6136

Vadj can be  calculated by  VRV1×((R1+RV1)/RV1)) = 0.6136×((1000+472)/472)=  1.9136volts

The Vbe multiplier also acts as thermal feedback unit as Q3 and Q5 get hot during operation, Q4 senses the heat and controls the collector current  by reducing base of Q1 and Q2.  Q4 must be placed/slabbed to the heatsink or  closely to the Q3 and Q5, Vbe multiplier plays a critical role in an amplifier to make the circuit thermally stable. Emitter current of Q1 is limited by R1 and Collector current of Q2 limited by R5,  Q3 and Q5 are the output transistors using both NPN transistors; this configuration is also called the Quasi Complementary output stage, R6 and R7 are emitter resistors which are 0.22 to prevent the transistors from thermal runaway. C7 is the output coupling capacitor which is 2200uF, 3300uF would do better if you need deep bass. From the loudspeaker, R10 and C8 form a low impedance path for bypassing the high frequency noise. The impedance of the network R10 and C8  is lower at higher  frequency and higher at lower frequency components

Prototype of amplifier:

 .

img_3402

734707e0-ec48-4c38-9a7d-0a229e49c62e-392-0000000d682a1a4a_file

Assembly instructions:

  1. Q3, Q4 and Q5 must be attached on the same heatsink, thermal insulators(mica) should be used for Q3 and Q5 to avoid short circuit of Power transistor Collector terminals of each,  as center terminal is attached to main tab/body inside of transistor
  2. Adjust RV1 to 472

Specifications:

Output Impedance:  0.039

output :  12watts at 0.28% into 4 driver(loud speaker)

Capable of driving loudspeakers of impedance range 2-16

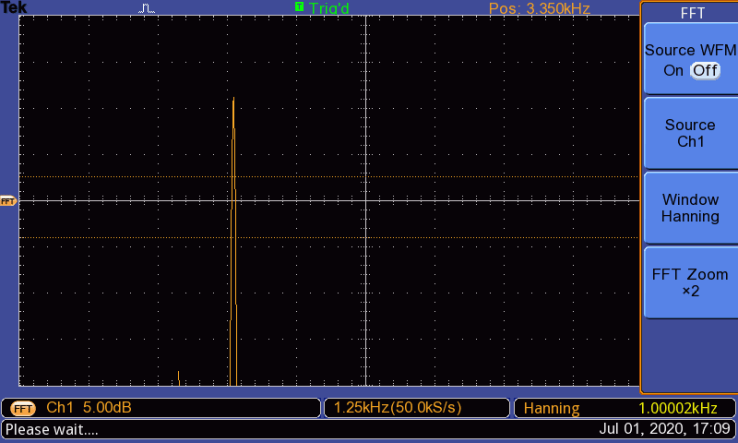

F0002TEKpngFFT response of the amplifier  we see only fundamental and delivering  11watts RMS into 4.7E power resistor

Note: If you want STEREO for the other channel just duplicate the same, I have configured mine in mono channel by adding two 100E resistors at the input. Schematic posted here is a single channel.

Components:

Semiconductors:

  1. U1A, U1B and U1C  OPA2134 (Texas Instruments)
  2. Q1  BD139 (ST microelectronics)
  3. Q2  BD140 (ST microelectronics)
  4. Q3, Q5 TIP3055G (ST microelectronics)
  5. Q4 ZTX450 (Diodes Incorporated)

Passive:

  1. R1 1K  1/4watt
  2. R3 , R5 330  1/2watt
  3. R4 100 1/4watt
  4. R6 , R7 0.22, 2watt
  5. R8 , R9 47K 1/4watt
  6. R10 10 , 1watt
  7. R11 4.7K 1/4watt
  8. R12 82K 1/4watt
  9. R13 1.8K 1/4watt
  10.  RV1 1K, trim potentiometer
  11. C1, C2  10uF, 50V electrolytic
  12. C3, C9 1uF 50V ceramic
  13. C4 4.7uF, 50V ceramic
  14. C5, C8 100nF 50V ceramic
  15. C6 220uF, 50V electrolytic
  16. C7 2200uF   electrolytic
  17. C10 47pF 50V ceramic

Miscellaneous:

  1. Heatsink
  2. Thermal insulators or mica  with screw fittings
  3. LS1 loudspeaker 4, 20watt rated.

Equipment used to validate the amplifier circuit:

  1. Function generator AFG1022
  2. Scope TBS1072
  3. 20V, 3A  adapter
  4. Fluke 115 DMM
  5. Power resistors 3.33 12watt and 4.725watt

I will be very happy if you want to make this circuit. If you do, send me the pictures of your circuit, would like to see. If you feel any trouble in building  this, let me know. Happy building.
